Palladian Helical-Flange Pedicle Screw System

SPECS

Product Category: Spinal Implants

By Product Type: Screws

Screw Type: Pedicle Screws (Thoraco-lumbar)

Features: Polyaxial Head , Extended Reduction Head Tabs , K-Wire Cannulated , High-Angulation Screw , Self Tapping

By Location/Approach: Posterior Thoracic , Posterior Lumbar

By Procedure Type: Thoraco-lumbar-Pelvic Fixation

By System Type: Degenerative

Screw Materials: Titanium

By Material: Titanium (Solid)

DESCRIPTION

Palladian by NeuroStructures/NuGen is a thoracolumbar pedicle screw system that utilizes proven helical-flange technology to minimize cross-threading and seat splay. Although there are pre-contoured rods available to minimize the need for rod bending, there is up to 60 degrees of conical screw variability to reduce necessity for additional rod contouring.

Features:


  • Top-loading and tightening system
  • Helical-flange closure mechanism
  • Up to 60 degrees of conical screw variability
  • Pre-contoured rods
  • Extended reduction towers available
  • 5.5mm rod system
  • Double lead threads
  • Screw Diameters:
    • 4.5, 5.5, 6.5, 7.5, 8.5mm
  • Screw length options:
    • 40-80mm

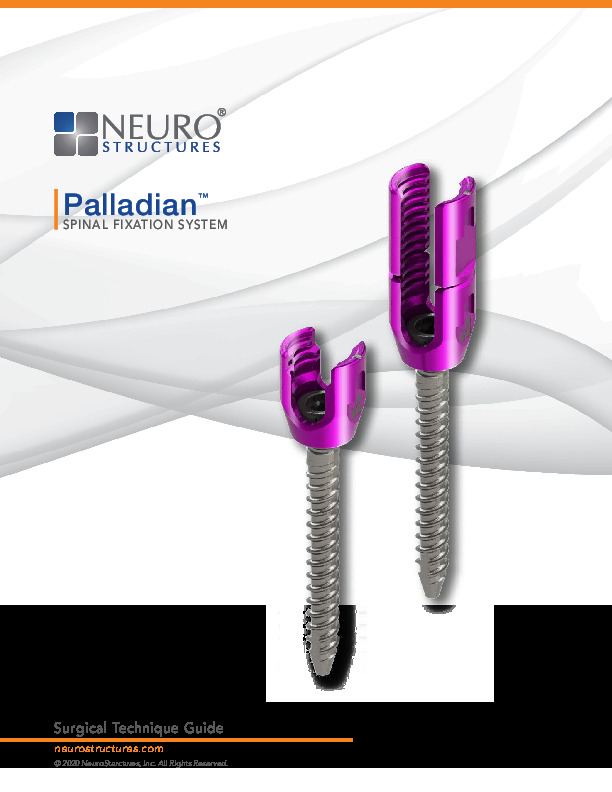

Product Brochures and Guides
