PLAGE Anterior Cervical Fusion System

SPECS

Product Category: Spinal Implants

By Product Type: Interbody Device

Cage Type: Interbody Cage/Cervical

Expansion: Static

Cage Approach: Anterior

Configuration: Low profile plate attached

By Material: Titanium (Solid) , Titanium etched

Cage Material: Titanium Solid (etched surface)

By Location/Approach: Anterior Cervical

By Procedure Type: ACDF

By System Type: Degenerative , Deformity

DESCRIPTION

The PLAGE Anterior Cervical Fusion System by Rhausler is a one-piece titanium plate-cage implant designed for immediate single-level surgical fixation of the anterior cervical spine. The all-in-one device has a large surface area to reduce force on he bony endplates and the integrated fixation plate allows for direct purchase into the vertebrae without damaging the endplates that are supporting the cage. There are slotted screw holes for translational functionality and various screw placement positions, and the locking of the bone screw is co-axial with visual and tactile locking verification. The superior and inferior surfaces are textured to enhance bonding and bone growth, and the thin radiolucent sidewall windows allow visualization of the boney in-growth post operatively.

Features:

  • Plate and cage in one solid implant
  • Made of solid titanium with roughened superior and inferior surfaces
  • Large implant surface area reduces force on the bony endplate
  • Screws do not penetrate or mechanically damage the bony endplates that are supporting the cage
  • Large central graft window
  • Thin walled side windows for radiolucency for post operative visualization
  • Footprint options (DxW):
    • 13 x 14 mm
    • 15 x 14 mm
    • 17 x 16 mm
  • Height options:
    • 5-10 mm in 1 mm increments
  • Lordosis options:
    • 0 degree

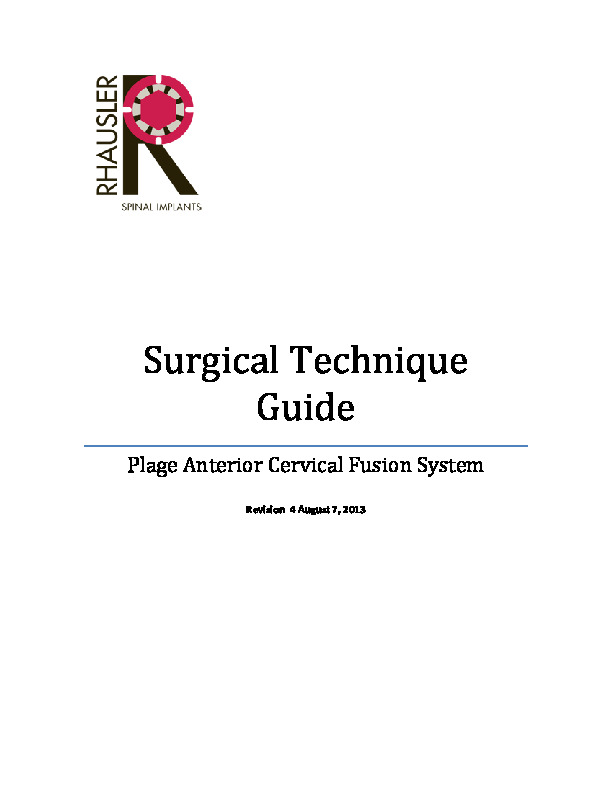

Product Brochures and Guides
