Solidity VBR Expandable Thoracolumbar Vertebral Body Replacement

SPECS

Product Category: Spinal Implants

By Product Type: Interbody Device

Cage Type: Corpectomy Cage/Thoracic,Lumbar

Expansion: Expandable

Configuration: Cage Alone

By Location/Approach: Posterior Thoracic , Posterior Lumbar , Anterior/Lateral Thoracic , Anterior Lumbar , Lateral Lumbar , Oblique Lumbar

By Procedure Type: Thoraco-lumbar Corpectomy

By System Type: Degenerative , Deformity , Trauma

Expansion Type/Lordosis: Parallel expansion (Fixed Lordosis)

Cage Approach: Anterior , Lateral , Oblique (ATP: Anterior-To-Psoas)

By Material: Titanium (Solid)

DESCRIPTION

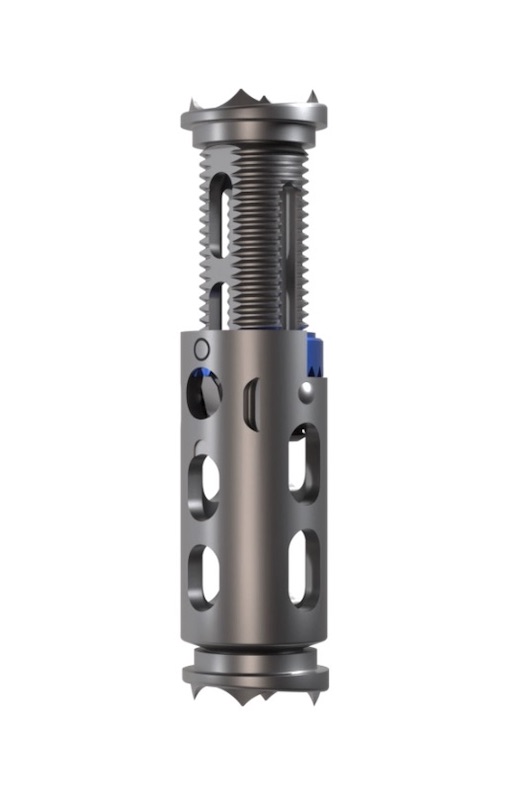

The Solidity expandable vertebral body replacement device by Ulrich Medical USA is used for the surgical reconstruction of defects of the thoracic and lumbar spine (T1-L5), from anterior, lateral, or posterior approach. The continuous, gear-driven expansion allows for precise bridging of defect with patient specific fit, and the angulation plates that come in multiple options can be replaced or exchanged even after a construct has been assembled.

Features:

  • Titanium construction
  • 360 degree assembly orientation supports any surgical approach
  • 625 unique angulation plate configurations
  • Self-locking implant requires no additional set screw

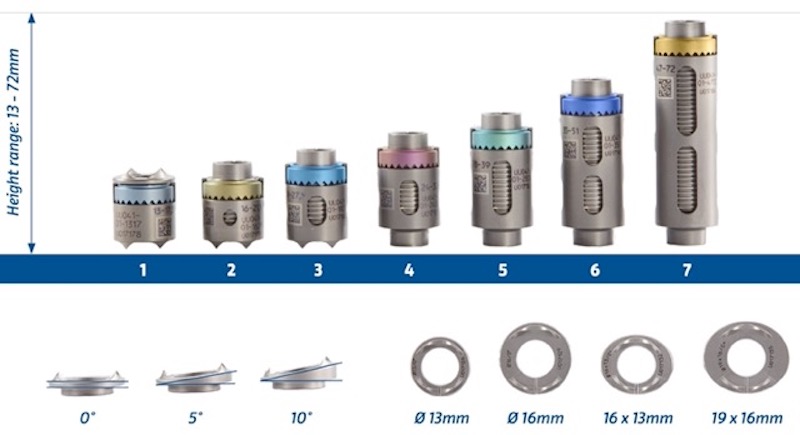

  • Centerpiece options:
    • 7 expandable cage options
    • 13-72 mm height range
    • Large graft volume with large oval shaped side windows
    • Expansion Range options:
      • 13-17.5mm
      • 16-21.5mm
      • 19-27.5mm
      • 24-32mm
      • 28-39mm
      • 35-51mm
      • 47-72mm
  • Angulation plate options:
    • 13 and 16 mm diameter circular plates
    • 16x13 mm and 19x16 mm oval plates
    • Lordosis options:
      • 0 degree
      • 5 degree
      • 10 degree
    • 1.5 mm tall teeth to avoid migration
  • Extension rings available to enlarge to the footprint of the smaller implant heights

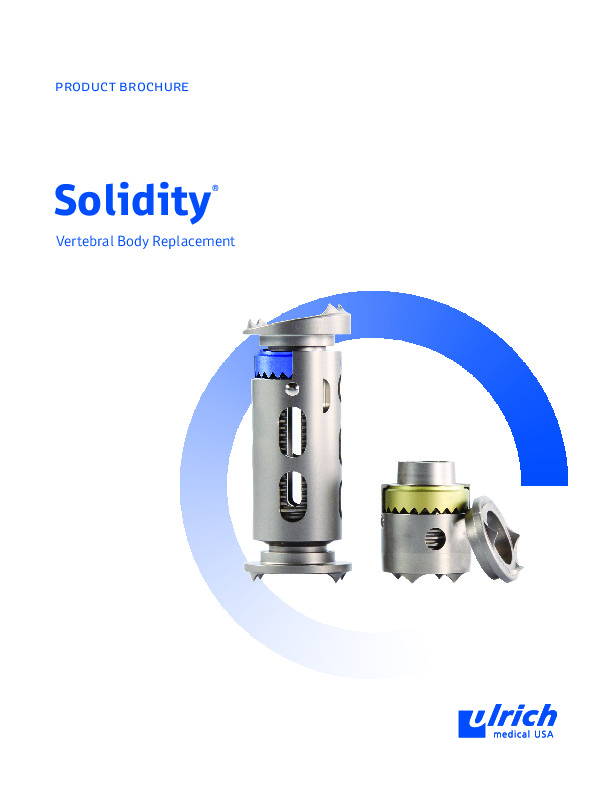

Product Brochures and Guides
