paediGAV Pediatric Fixed Pressure Anti-siphon Hydrocephalus Shunt Valve

SPECS

Product Category: Cranial Products/CSF Management/CSF Shunts

Shunt System Type: Ventriculoperitoneal (VP) Shunts , Pediatric Specific Valves

Valve Type: Fixed Pressure Valves , Antisiphon Valves

MRI Compatibility (Locking): MRI Permissible (Non-magnetic) , MRI 1.5T Compatible , MRI 3T Compatible

Antisiphon Properties: Gravitational Antisiphon

DESCRIPTION

The Miethke paediGAV fixed pressure anti-siphon hydrocephalus Shunt valve by Aesculap is a specialty shunt valve with lower pressures specifically tuned for the use in pediatric hydrocephalus. It features the same technology and antisiphon gravitational valve as the GAV but smaller size and lower opening pressure options:

Features:

  • Fixed differential pressure valve with 6 opening pressure arrangement options
  • MRI compatible up to 3T

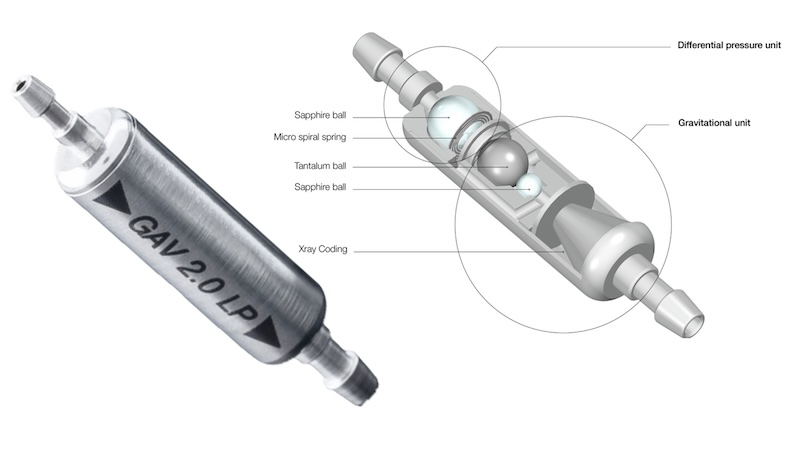

  • Has combined differential pressure ball-in-cone valve combined with position dependent gravitational unit.

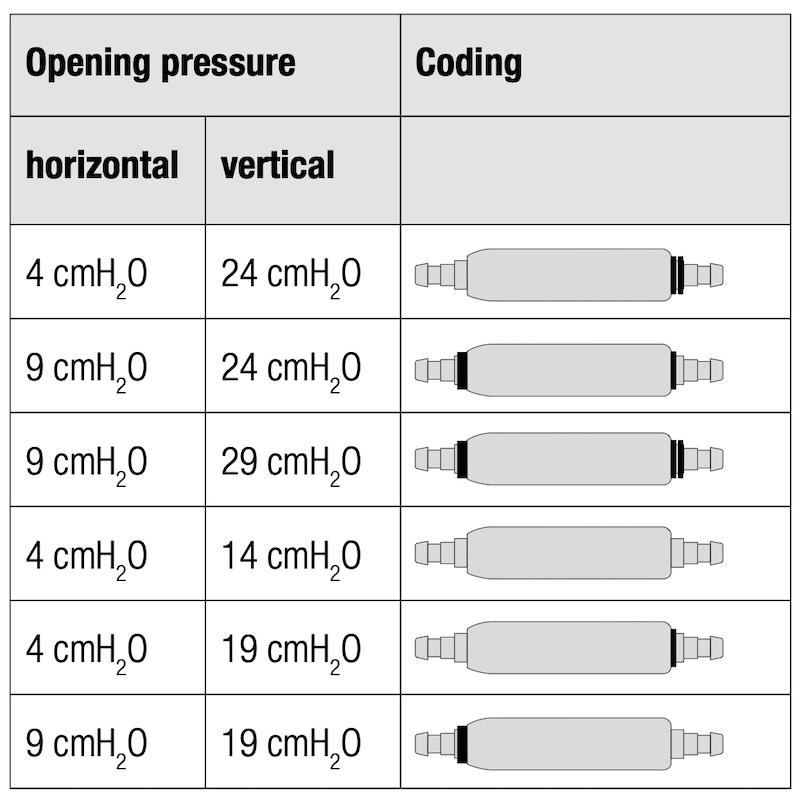

  • Opening pressure options (Horizontal/ Vertical)
    • 4/24 cmH2O
    • 9/24 cmH2O
    • 9/29 cmH2O
    • 4/14 cmH2O
    • 4/19 cmH2O
    • 9/19 cmH2O
  • Pressure recommendations:
    • Children up to 6 months: 4/24 cmH2O
    • Children 6m to 5 yr: 9/24 cmH2O
    • Children > 5yr: 9/29 cmH2O

Product Brochures and Guides
