PS Medical Strata NSC Adjustable Shunt Valve

COMPANY: Medtronic

SPECS

Product Category: Cranial Products/CSF Management/CSF Shunts

Shunt System Type: Ventriculoperitoneal (VP) Shunts , Pediatric Specific Valves , Lumboperitoneal (LP) Shunts

Valve Type: Programmable/ Adjustable Valves

MRI Compatibility (Locking): Non MRI Compatible (Non-Locking)

DESCRIPTION

The PS Medical Strata NSC valve by Medtronic is an adjustable shunt valve without an antisiphon Delta Chamber (NSC = No Siphon Control). It utilizes the same adjustable control system on the Strata II with 5 pefromance levels (0.5, 1.0, 1.5, 2.0, 2.5). The Strata NSC utilizes a handheld reading and adjustment tool but does not have a locking mechnism and therefore susceptible to movement with MRI and requires adjustment or checking after an MRI.

Features:

  • Adjustable valve, non-MRI locking (requires post-MRI adjustment)
  • NSC (No Siphon Control)

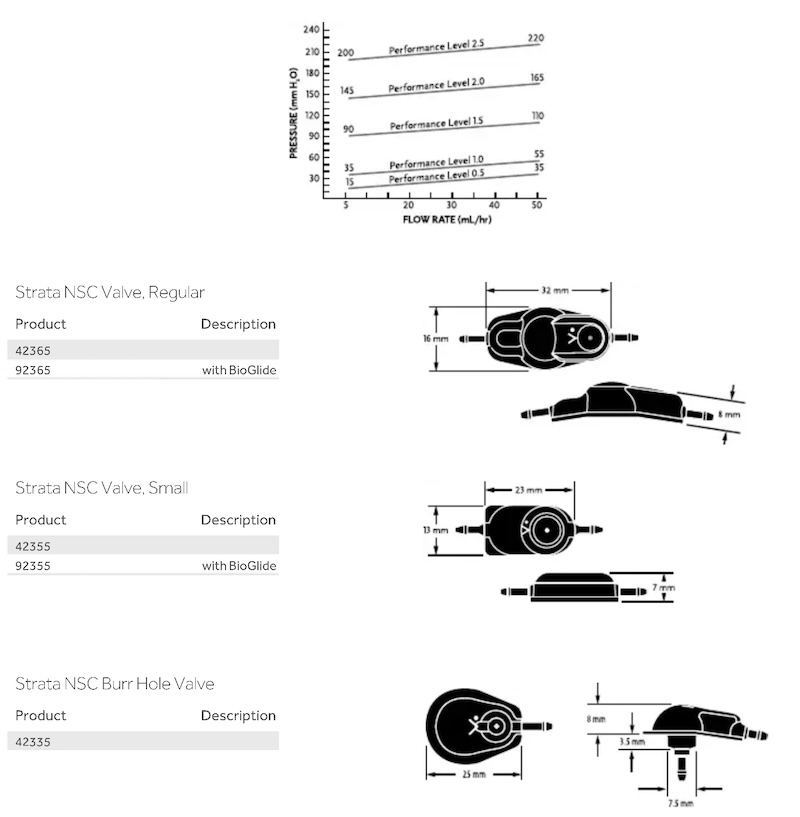

  • Available in 3 valve configuations:
    • Regular
    • Small
    • Burr hole valve

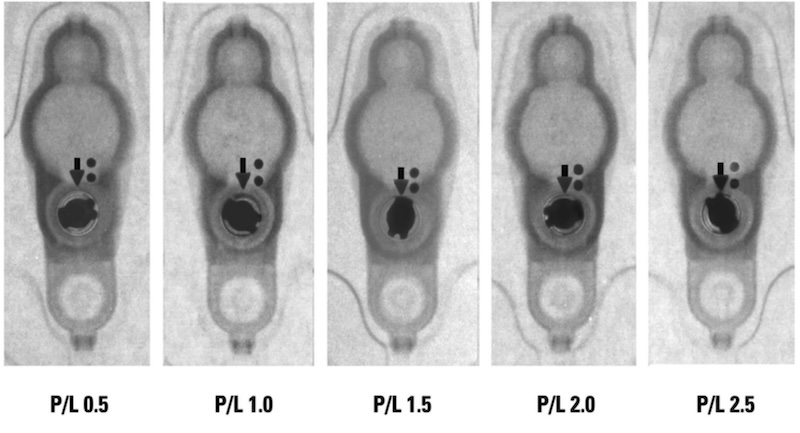

  • 5 pressure setting (Peformance levels)
    • P/L 0.5: 15-35mmH2O
    • P/L 1.0: 35-55mmH2O
    • P/L 1.5: 90-110mmH2O
    • P/L 2.0: 145-165mmH2O
    • P/L 2.5: 200-220mmH2O
